Part Number: 3T-NW-25B
Price: $88.00

  • ISO-KF flanges are manufactured in accordance with DIN 28403 and ISO 2861
  • Most common standard lengths and sizes listed
  • Many others available, including a range of 316L material and preps for metric tubing
  • Contact us at 800-824-4166 if you can't find exactly what you need

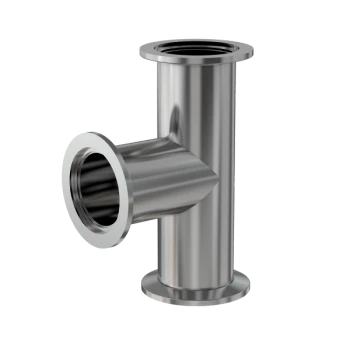

NW-25 Tee
Technical Resources
  • Flange Size: DN 25 ISO-KF
  • Tee Type: Standard Tee
  • Material: 304 Stainless
  • Tube OD: 1"
  • Port Length: 2.03"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 0.49 lbs
Imperial Units

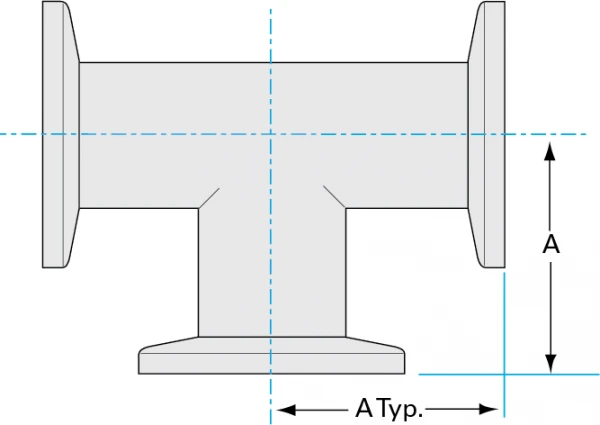

Dim A: 2.03"
