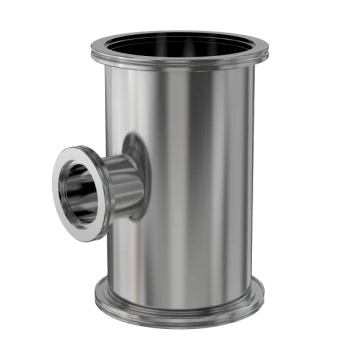

ISO-K Reducer Tee

Part Number: 3TR-ISO-80-63-OF
Price: $370.50
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-K and ISO-F flanges are manufactured in accordance with DIN 28404 and ISO 1609
  • Many others available
  • Most common standard lengths and sizes listed
ISO-80 to ISO-63 OF ReducerTee
Technical Resources
Specifications
  • Flange Size: DN 80 ISO-K
  • Tee Type: Reducer Tee
  • Flange 2: DN 63 ISO-K
  • Material: 304 Stainless
  • Tube OD: 3"
  • Tube OD 2: 2-1/2
  • Port Length: 3.50"
  • Port Length 2: 3.50"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 4.1 lbs

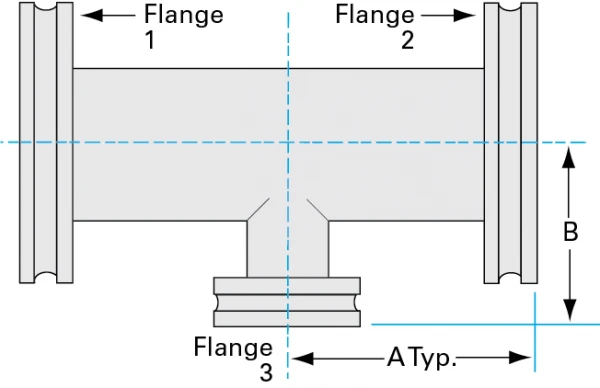

ISO-Reducer-Tees-Dia
Imperial Units
Dim A: 3.50"
Dim B: 3.50"
