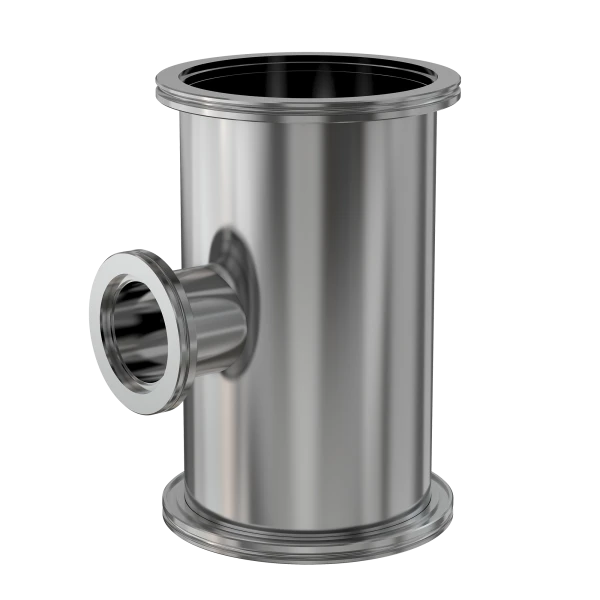

ISO-K Reducer Tee

Part Number: 3TR-ISO-100-63-OF

Price: $364.00

Quantity:

Features

Contact us at 800-824-4166 if you can't find exactly what you need
ISO-K and ISO-F flanges are manufactured in accordance with DIN 28404 and ISO 1609
Many others available
Most common standard lengths and sizes listed

ISO-100 to ISO-63 OF ReducerTee

Technical Resources

Specifications

Flange Size: DN 100 ISO-K
Tee Type: Reducer Tee
Flange 2: DN 63 ISO-K
Material: 304 Stainless
Tube OD: 4"
Tube OD 2: 2-1/2
Port Length: 4.13"
Port Length 2: 4.00"
Vacuum Range: FKM: 1 · 10^-8 mbar to 1 bar
Metal seal: 1 · 10^-10 mbar to 1 bar
Temperature Range: FKM: -20 °C to 180 °C
Metal seal: -270 °C to 150 °C
Weight: 5.4 lbs

Dim A: 4.13"
Dim B: 4.00"

Installation Hardware
