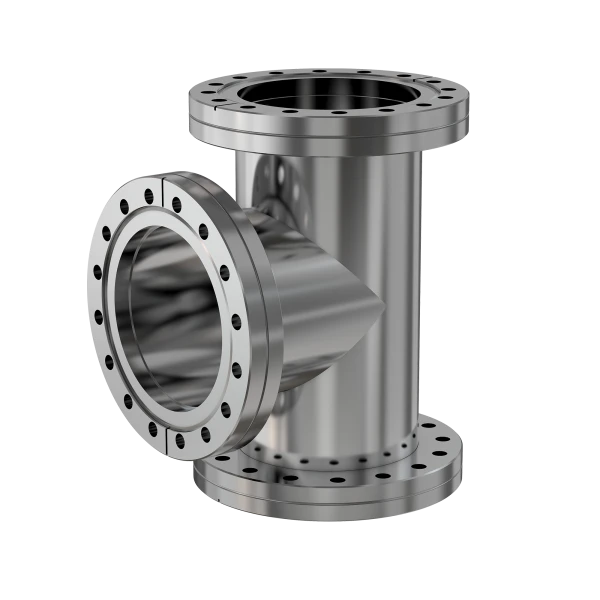

CF Tee

Part Number: 3T-075
Price: $84.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Most popular sizes and types listed
  • Rotatable flanges make component alignment easy
  • The CF flange system is ideal for UHV system construction
1.33" OD CF TEE
Technical Resources
Specifications
  • Flange Size: DN 16 CF (1.33" OD)
  • Tee Type: Standard Tee
  • Material: 304 Stainless
  • Tube OD: 3/4"
  • Port Length: 1.50"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-13 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -200 °C to 450 °C
  • Weight: 0.3 lbs
CF-Tees-Dia
Imperial Units
Dim A: 1.50"
