17 Port Electropolished Surface Analysis Chamber

Part Number: SAC-12WS

Quantity:

14.62in Wire‑Seal Pump Flange

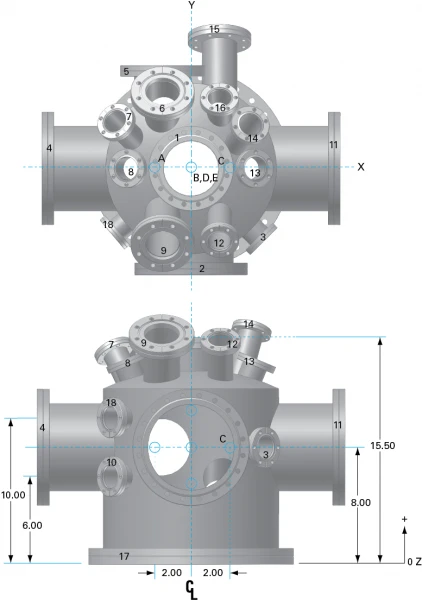

The SAC‑12WS is a spherical surface analysis chamber made from 304 stainless steel, electropolished inside and out. It includes seventeen CF-flanged analysis ports and a 14.62″ (DN300 WS) wire-seal pumping flange. Engineered for demanding UHV applications, the chamber is bakeable to 450 °C, leak-tested to <1×10⁻⁹ cc/sec, and capable of sustaining pressures in the ~1×10⁻¹⁰ mbar range. With its flexible port geometry and clean fabrication, the SAC‑12WS is ideal for surface science experimental setups that require multiple access points.

Technical Resources

Specifications

Product Type: Surface Analysis Chamber
# Analysis Ports: 17
Base Flange Size: DN 300 WS (14.62" OD)
Finish: Electropolished
Material: 304 Stainless
Vacuum Range: 1E-10 mbar to 1 bar
Temperature Range: -20 C to 450 C
Weight: 0 lbs

Imperial Units

Need a Custom Design?
Click Here to Request a Quote
