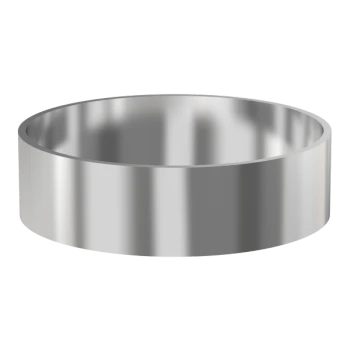

ISO-KF Overpressure Ring

Part Number: NW-16-PR
Price: $8.75
Quantity:


Features
  • ISO-KF flanges are manufactured in accordance with DIN 28403 and ISO 2861
  • Most common standard lengths and sizes listed
  • Many others available, including a range of 316L material and preps for metric tubing
  • Contact us at 800-824-4166 if you can't find exactly what you need
NW-16 Overpressure Ring
Technical Resources
Specifications
  • Product Type: Overpressure Ring
  • Fits Flange Size: DN 16 ISO-KF
  • Weight: 0.036 lbs
  • Outer Ring Material: 304 Stainless

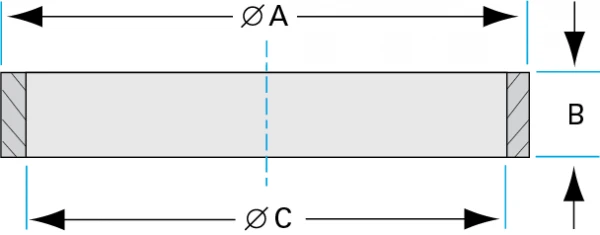

NW-Stainless-Steel-Over-Pressure-Rings-Dia
Imperial Units
Dim A: 1.25"
Dim B: 0.346"
Dim C: 1.19"
