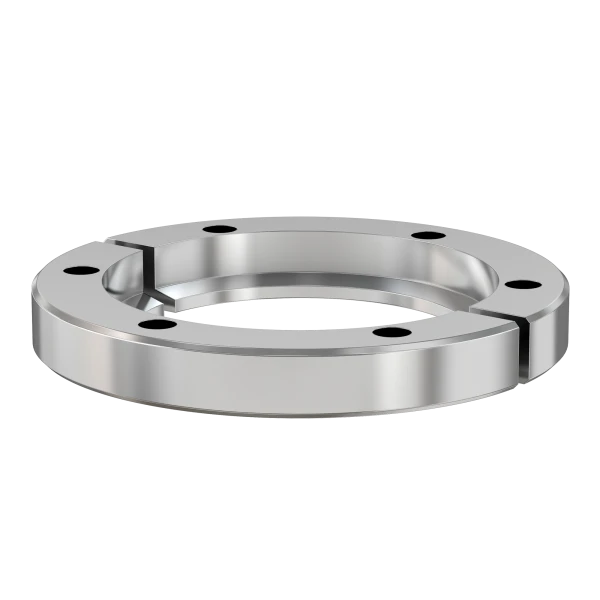

ISO-KF Bulkhead Clamp

Part Number: NW-16-BCP
Price: $21.05
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-KF flanges are manufactured in accordance with DIN 28403 and ISO 2861
  • Many others available, including a range of 316L material and preps for metric tubing
  • Most common standard lengths and sizes listed
NW-16 Bulkhead Clamp Kit, Includes six 10-32 Bolts
Technical Resources
Specifications
  • Product Type: Bulkhead Clamp
  • Fits Flange Size: DN 16 ISO-KF
  • Clamp Material: Aluminum, 18-8 Stainless Bolts
  • Weight: 0.118 lbs
  • Select Feature: UNF thread
NW-Bulkhead-Clamp-Kits-Dia
Imperial Units
Dim A: 2.00"
Dim B: 0.361"
Dim D: 0.900"
Dim G: 10-32
