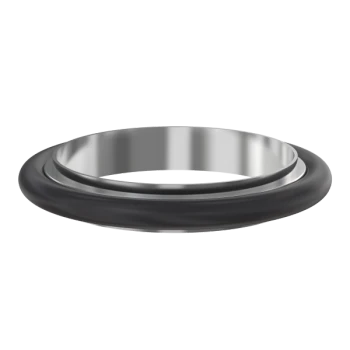

ISO-KF Centering Ring w/ O-Ring
Part Number: NW-10-CR-SS
- ISO-KF flanges are manufactured in accordance with DIN 28403 and ISO 2861
- Most common standard lengths and sizes listed
- Many others available, including a range of 316L material and preps for metric tubing
- Contact us at 800-824-4166 if you can't find exactly what you need
NW-10 Centering Ring (SS) w/Silicone O-ring
- Product Type: Centering Ring Assembly
- Fits Flange Size: DN 10 ISO-KF
- Seal Material: Silicone
- Weight: 0.009 lbs
- Select Feature: without Spacer Ring
- Centering Ring Material: 304 Stainless
Dim A: 0.478"
Dim B: 0.310"
Dim C: 0.456"
Dim D: 0.154"
Dim E: 0.210"
Dim A: 12.14 mm
Dim B: 7.87 mm
Dim C: 11.58 mm
Dim D: 3.91 mm
Dim E: 5.33 mm
