ISO-KF Reducing Centering Ring

Part Number: NW-10/16-CR
Price: $11.55

  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-KF flanges are manufactured in accordance with DIN 28403 and ISO 2861
  • Many others available, including a range of 316L material and preps for metric tubing
  • Most common standard lengths and sizes listed
NW-16 to NW-10 Reducing Centering Ring (SS) w/FKM O-ring
Technical Resources
  • Product Type: Reducing Centering Ring Assembly
  • Fits Flange Size: DN 16 ISO-KF
  • Seal Material: FKM
  • Weight: 0.013 lbs
  • Centering Ring Material: 304 Stainless

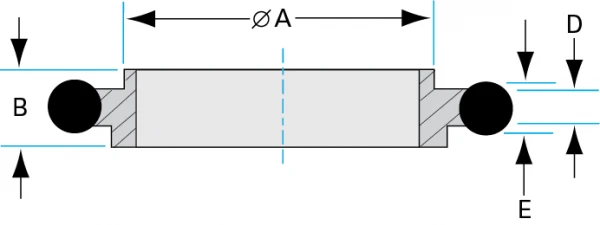

Imperial Units
Dim A: 0.480"
Dim B: 0.310"
Dim D: 0.154"
Dim E: 0.210"
