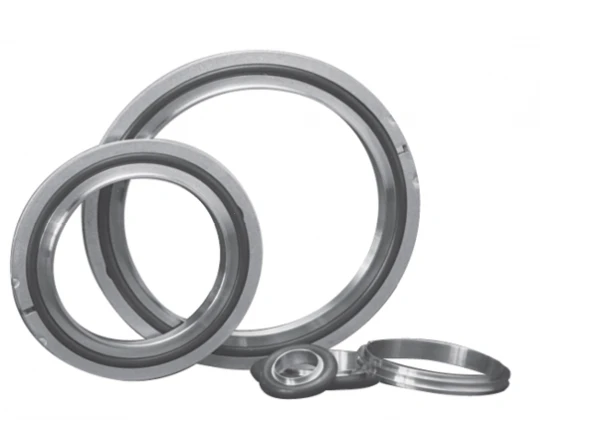

ISO-K/ISO-F Centering Ring w/ Screen

Part Number: ISO-160-CR-SV-16
Price: $366.50
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-K and ISO-F flanges are manufactured in accordance with DIN 28404 and ISO 1609
  • Many others available
  • Most common standard lengths and sizes listed
ISO-160 Stainless Centering Ring w/Screen
Technical Resources
Specifications
  • Product Type: Centering Ring Assembly
  • Fits Flange Size: DN 160
  • Weight: 0.32 lbs
  • Select Feature: with Screen
  • Seal Material: FKM
  • Centering Ring Material: 304 Stainless
  • Spacer Ring Material: Aluminum
Imperial Units
Dim A: 6.01"
Dim B: 0.312"
Dim C: 5.50"
Dim D: 0.154"
Dim E: 0.210"
