Rotary Motion Feedthrough

Part Number: PRM-275-038-24

Quantity:

2.75" OD CF Precision Rotary Vacuum Feedthrough, 3/8" x 24" shaft

Technical Resources

Specifications

Rotary Motion Feedthrough Type: Precision Manual Actuation
Flange Size / Type: DN 40 CF (2.75" OD)
Linear Stroke: N/A
Feedthrough Shaft: 3/8" OD
Orientation: Any
Vacuum Range: 1 · 10^-10 mbar to 1 bar (UHV)
Temperature Range: 20 °C to 200 °C
Flange Material: 304 Stainless
Maximum Torque: 7.8 Nm
Weight: 4 lbs

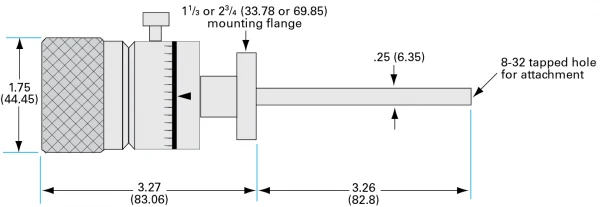

Precision-Rotary-Motion-Dia

Installation Hardware

CF Gasket [G-275-SP]
