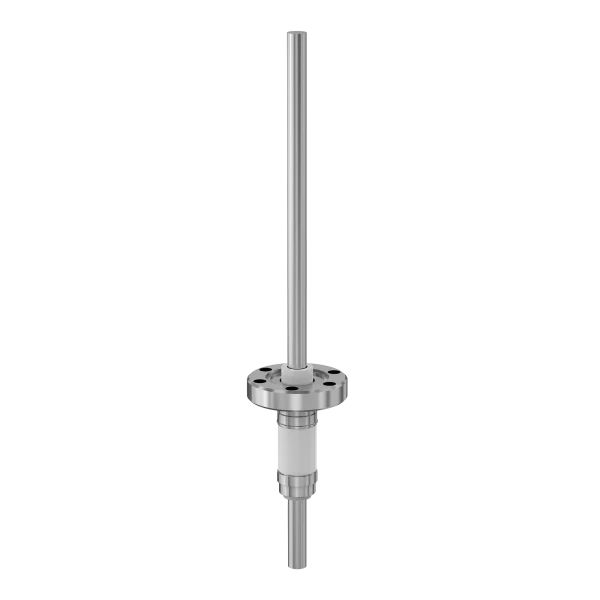

Power Feedthrough

Part Number: MCF-150-1N
Price: $147.00
2.75" OD CF Medium Current Nickel Feedthrough, Single Conductor
Technical Resources
  • Power Feedthrough Type: Medium Current Feedthrough
  • # Conductors: One
  • Conductor Material: Nickel
  • Flange Size / Type: DN 40 CF (2.75" OD)
  • Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
  • Temperature Range: |-270 °C to 450 °C
  • Voltage Rating: 2 KV DC
  • Current Rating: 6 A
  • Electrical Connector: CF-VC
  • Weight: .82 lbs
Imperial Units
Dim A: .18"
Dim B: .08"
Dim C: .250"
Dim D: .00"
