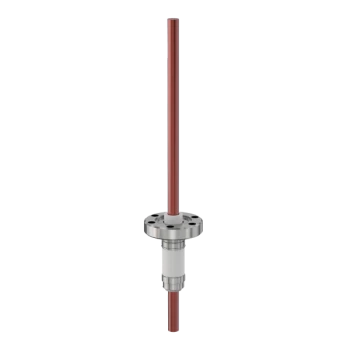

Water Cooled Power Feedthrough

Part Number: MCF-075-1W
Price: $133.50
Quantity:

1.33" OD CF Water Cooled Medium Current Copper Feedthrough, Single Conductor
Technical Resources
Specifications
  • Power Feedthrough Type: Medium Current Feedthrough
  • # Conductors: One
  • Conductor Material: OHFC Copper
  • Flange Size / Type: DN 16 CF (1.33" OD)
  • Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
  • Temperature Range: |-270 °C to 450 °C
  • Voltage Rating: 2 KV DC
  • Electrical Connector: CF-VC
  • Weight: .19 lbs
Medium-Current-Feedthroughs-Dia
Imperial Units
Dim A: .21"
Dim B: .05"
Dim C: .250"
Dim D: .00"

Installation Hardware
