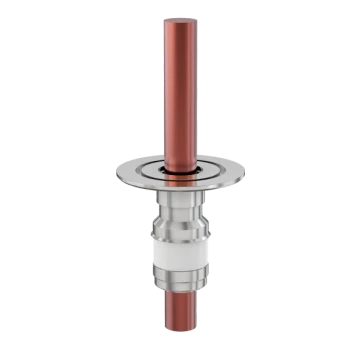

Water Cooled Power Feedthrough

Part Number: HCF-NW-50-1W
Price: $300.00
Quantity:

NW-50 High Voltage Feedthrough, Water Cooled, Single Conductor
Technical Resources
Specifications
  • Power Feedthrough Type: High Current Feedthrough
  • # Conductors: One
  • Conductor Material: OFHC Copper
  • Flange Size / Type: DN 50 ISO-KF
  • Flange Material: 304 SS
  • Vacuum Range: 1 · 10-8 mbar to 1 bar (high vacuum)
  • Temperature Range: -20 °C to 200 °C
  • Voltage Rating: 8 KV DC
  • Weight: 0.88 lbs
Imperial Units
Dim A: 3.85"
Dim B: 3.40"
Dim C: 0.750"
Dim D: 1.00"
Dim E: 1.00"

Installation Hardware
