Click to enlarge
View CAD

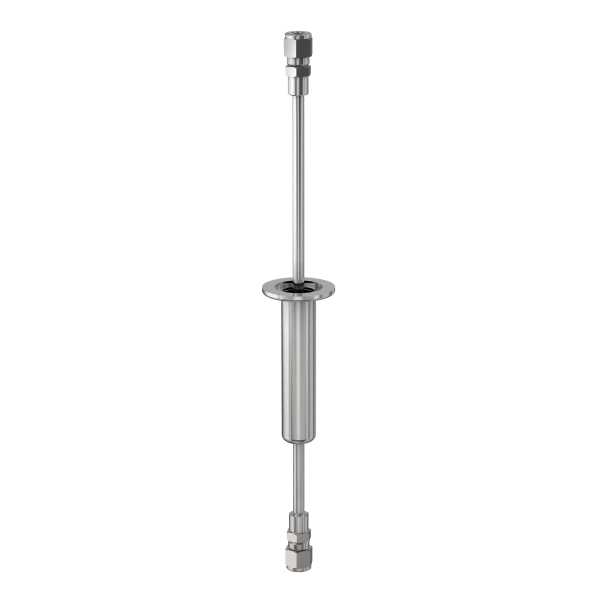

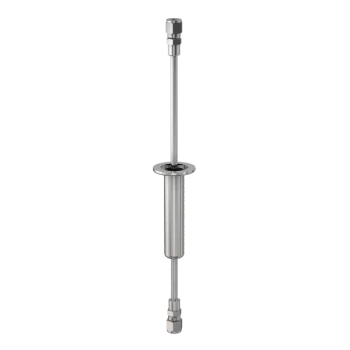

Liquid Nitrogen (LN2) Feedthrough LNF-NW-25-1-025-2SW

Part Number: LNF-NW-25-1-025-2SW

Quantity:

NW-25 Single Liquid Nitrogen Feedthrough, 1/4" Swagelok Fitting
Technical Resources
Specifications
Feedthrough Type: Liquid Nitrogen
Flange Size / Type: DN 25 ISO-KF
# Feedthroughs: One
Feedthrough Tube Termination: 1/4" Swagelok
Flange Material: 304 Stainless
Vacuum Range: 1 · 10-8 mbar to 1 bar (high vacuum)
Temperature Range: |-20 °C to 200 °C
Weight: .5 lbs
Single-Liquid-Nitrogen-Feedthroughs-Dia
Imperial Units
Dim A: .51"
Dim B: .51"
Dim E: .250"
