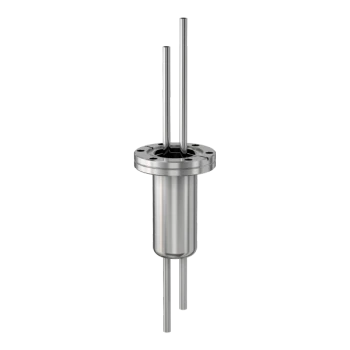

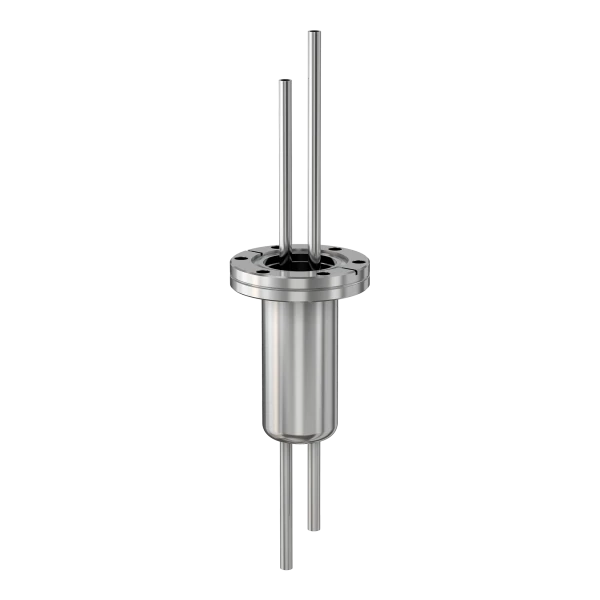

Liquid Nitrogen (LN2) Feedthrough

Part Number: LNF-150-2-038
Quantity:

2.75" OD CF Dual Liquid Nitrogen Feedthrough, 3/8" OD Tube
Technical Resources
Specifications
  • Feedthrough Type: Liquid Nitrogen
  • Flange Size / Type: DN 40 CF (2.75" OD)
  • # Feedthroughs: Two
  • Feedthrough Tube Termination: 3/8" OD Tube
  • Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
  • Temperature Range: |-270 °C to 450 °C
  • Weight: .75 lbs

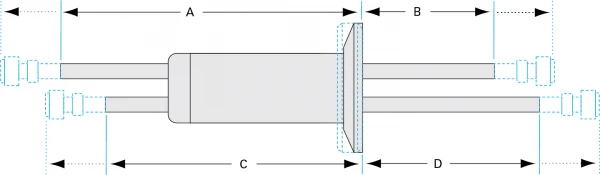

Dual-Liquid-Nitrogen-Feedthroughs-Dia
Imperial Units
Dim A: .50"
Dim B: .50"
Dim C: .50"
Dim D: .50"
Dim E: .375"

Installation Hardware
