Home / Vacuum Feedthroughs / LN2 Vacuum Feedthroughs / Dual Tube LN2 Feedthroughs / Liquid Nitrogen (LN2) Feedthrough
Click to enlarge
View CAD

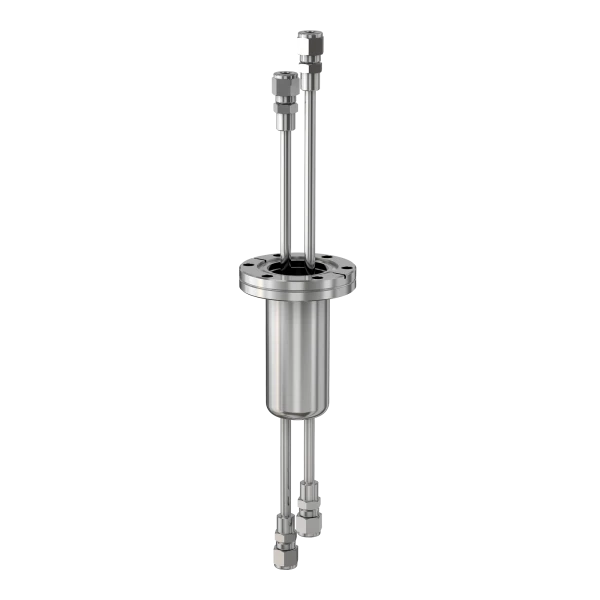

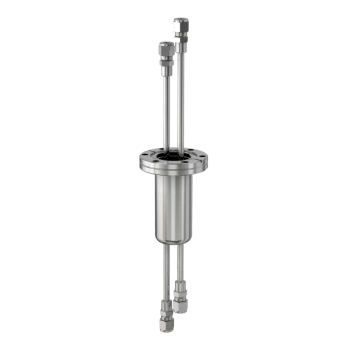

Liquid Nitrogen (LN2) Feedthrough

Part Number: LNF-150-2-025-4SW
Price: $699.00
Quantity:

2.75" OD CF Dual Liquid Nitrogen Feedthrough, 1/4" Swagelok Fitting
Technical Resources
Specifications
  • Feedthrough Type: Liquid Nitrogen
  • Flange Size / Type: DN 40 CF (2.75" OD)
  • # Feedthroughs: Two
  • Feedthrough Tube Termination: 1/4" Swagelok
  • Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
  • Temperature Range: |-270 °C to 450 °C
  • Weight: .75 lbs
Dual-Liquid-Nitrogen-Feedthroughs-Dia
Imperial Units
Dim A: .51"
Dim B: .51"
Dim C: .51"
Dim D: .51"
Dim E: .250"

Installation Hardware
