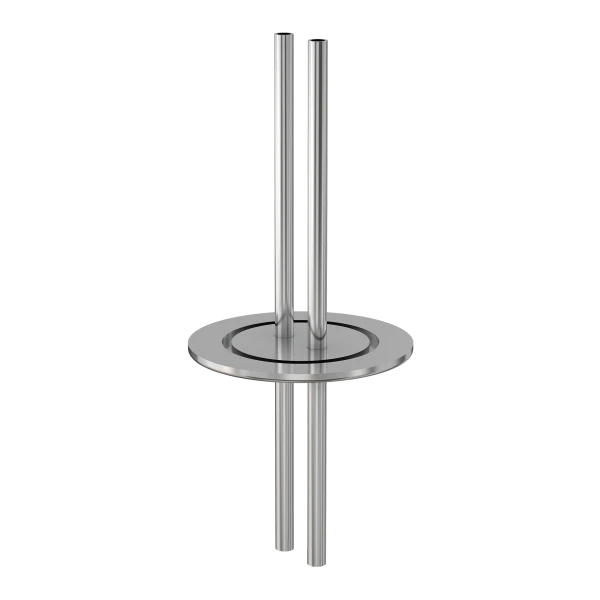

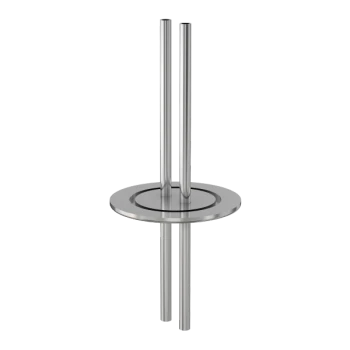

Liquid & Gas Feedthrough

Part Number: LFT-NW-50-2-025
Price: $405.00
Quantity:

NW-50 Dual Liquid Feedthrough, 1/4" OD Tube
Technical Resources
Specifications
  • Feedthrough Type: Liquid & Gas
  • Flange Size / Type: DN 50 ISO-KF
  • # Feedthroughs: Two
  • Feedthrough Tube Termination: 1/4" OD Tube
  • Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-8 mbar to 1 bar (high vacuum)
  • Temperature Range: -20 °C to 200 °C
  • Weight: 0.5 lbs
Dual-Liquid-Dia
Imperial Units
Dim A: 3.00"
Dim B: 4.00"
Dim E: 0.250"
