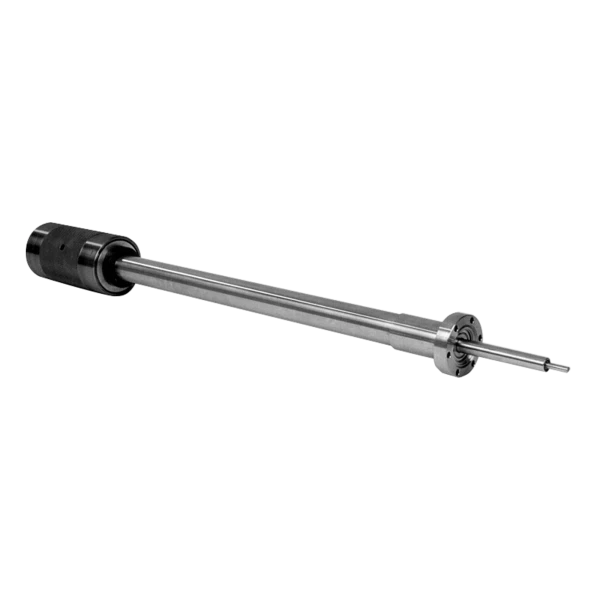

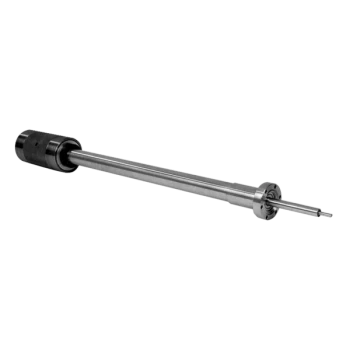

Linear & Rotary Vacuum Feedthrough

Part Number: MLRC-275-48
Quantity:

2.75" OD CF Coaxial Magnetic Linear/Rotary Vacuum Feedthrough, 48" Stroke
Technical Resources
Specifications
  • Linear/Rotary Motion Feedthrough Type: Manual Rotation / Push-Pull / Precision Guided
  • Flange Size / Type: DN 40 CF (2.75" OD)
  • Linear Stroke: 48"
  • Feedthrough Shaft: 1/4" (linear shaft); 3/4" (rotary probe)
  • Orientation: Any
  • Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
  • Temperature Range: 20 °C to 200 °C
  • Flange Material: 304 Stainless
  • Maximum Forces: 6.8 kg (thrust); 1 Nm (torque)
  • Weight: 20 lbs
