Home / Motion & Manipulation / Linear & Rotary Motion Vacuum Feedthroughs / UHV Bellows Sealed / Linear & Rotary Vacuum Feedthrough
Click to enlarge
View CAD

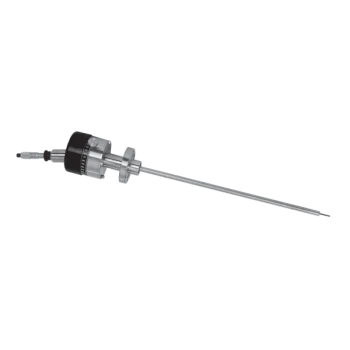

Linear & Rotary Vacuum Feedthrough

Part Number: PLR-275-050
Quantity:

2.75" OD CF Precision Linear/Rotary Vacuum Feedthrough, 1/2" Stroke
Technical Resources
Specifications
  • Linear/Rotary Motion Feedthrough Type: Precision Manual Rotation / Tilt Handle
  • Flange Size / Type: DN 40 CF (2.75" OD)
  • Linear Stroke: 1/2"
  • Feedthrough Shaft: 1/8" (linear proble); 3/8" (rotary tube)
  • Orientation: Any
  • Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
  • Temperature Range: |20 °C to 200 °C
  • Flange Material: 04 Stainless
  • Weight: lbs

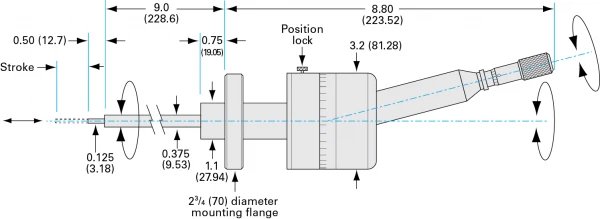

Precision-Linear-Rotary-Feedthrough-Dia
Imperial Units

Installation Hardware
