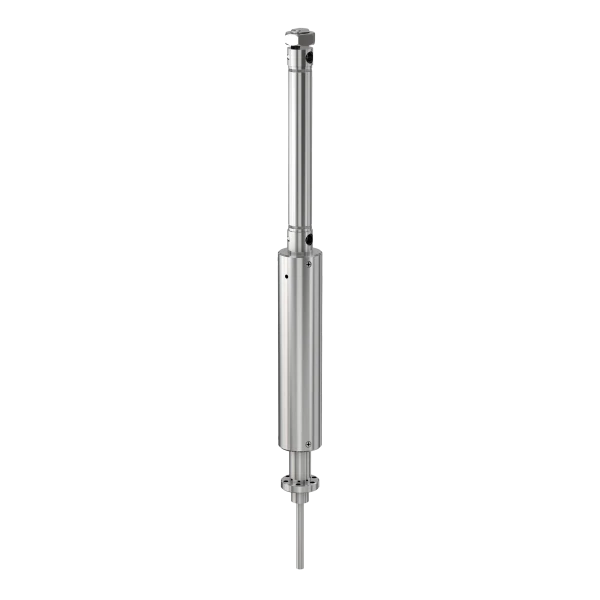

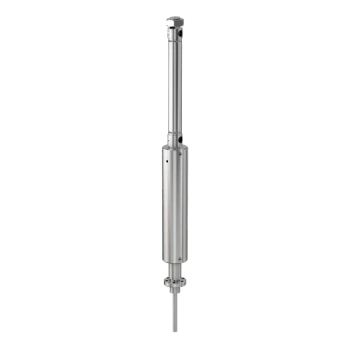

Linear Motion Feedthrough

Part Number: ALM-133-4
Quantity:

Pneumatic Linear Motion Feedthrough, 4" travel
Optional ACV-24 solenoid is available (shown in diagram). Additional cost applies. Add note to quote request or contact your local sales rep.
Technical Resources
Specifications
  • Linear Motion Feedthrough Type: Pneumatic Actuation
  • Flange Size / Type: DN 16 CF (1.33" OD)
  • Linear Stroke: 4"
  • Feedthrough Shaft: 1/4" OD
  • Orientation: Any
  • Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
  • Temperature Range: 20 °C to 200 °C
  • Flange Material: 304 SS
  • Supply Pressure: 3.5 to 10 bar
  • Weight: 5 lbs

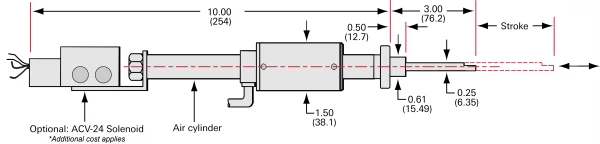

Pneumatically-Acuated-Linear-Dia _ With SOLENOID
Imperial Units

Installation Hardware
