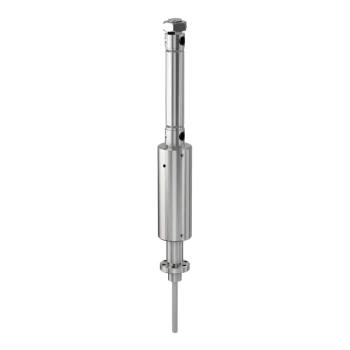

Linear Motion Feedthrough

Part Number: ALM-133-2

Price: $2,230.00
Quantity:

Specifications
Linear Motion Feedthrough Type: Pneumatic Actuation
Flange Size / Type: DN 16 CF (1.33" OD)
Linear Stroke: 2"
Feedthrough Shaft: 1/4" OD
Orientation: Any
Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
Temperature Range: 20 °C to 200 °C
Flange Material: 304 SS
Supply Pressure: 3.5 to 10 bar
Weight: 5 lbs
Manufacturer: Pfeiffer Vacuum+Fab Solutions
Pneumatic Linear Motion Feedthrough, 2" travel
Optional ACV-24 solenoid is available (shown in diagram). Additional cost applies. Add note to quote request or contact your local sales rep.
