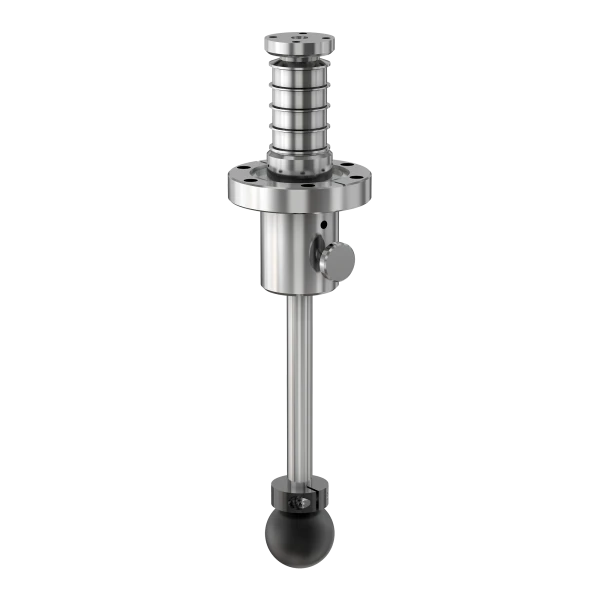

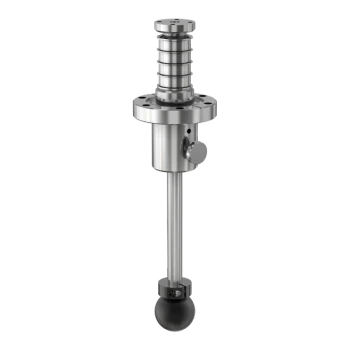

Linear Motion Feedthrough

Part Number: HLM-275-4
Quantity:

2.75" OD CF Heavy Duty Linear Motion Feedthrough, 4" Stroke
Technical Resources
Specifications
  • Linear Motion Feedthrough Type: Heavy Duty, Push-Pull
  • Flange Size / Type: DN 40 CF (2.75" OD)
  • Linear Stroke: 4"
  • Orientation: Any
  • Max. Load: 20 lbs
  • Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
  • Temperature Range: -20 °C to 250 °C
  • Flange Material: 304 SS
  • Weight: 5 lbs

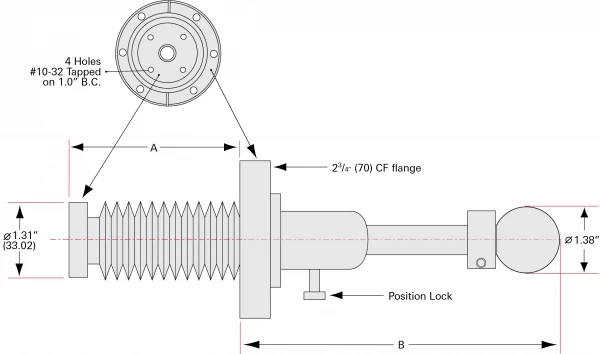

Heavy-Duty-Push-Pull-Linear-Motion-Dia_ Rev. Jan 2023
Imperial Units
Dim A: 2.58" - 6.58"
Dim B: 10.56"

Installation Hardware
