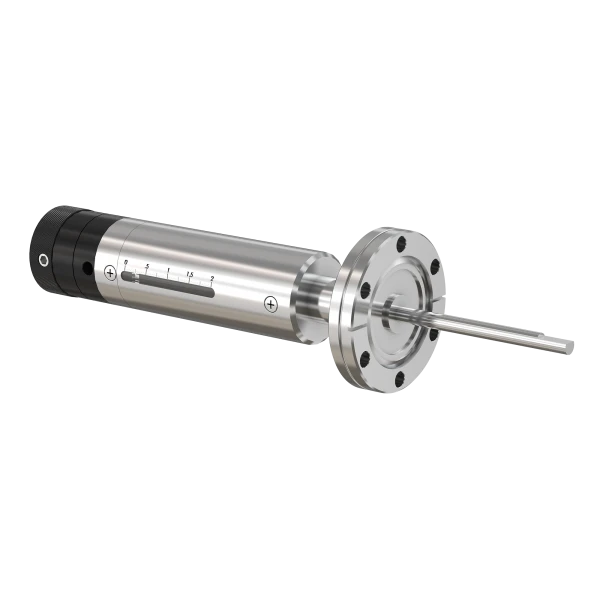

Linear Motion Feedthrough

Part Number: RLM-275-4

Quantity:

2.75" OD CF Linear Vacuum Feedthrough, 4" Stroke

Technical Resources

Product Spec Sheet

Specifications

Linear Motion Feedthrough Type: Medium Duty, Rotary Actuation
Flange Size / Type: DN 40 CF (2.75" OD)
Linear Stroke: 4"
Feedthrough Shaft: 1/4" OD
Orientation: Any
Vacuum Range: 1 · 10^-10 mbar to 1 bar (UHV)
Temperature Range: |20 °C to 200 °C
Flange Material: 04 Stainless
Weight: lbs

Linear-Vacuum-Feedthrough-Dia

Installation Hardware

CF Gasket [G-275-SP]
