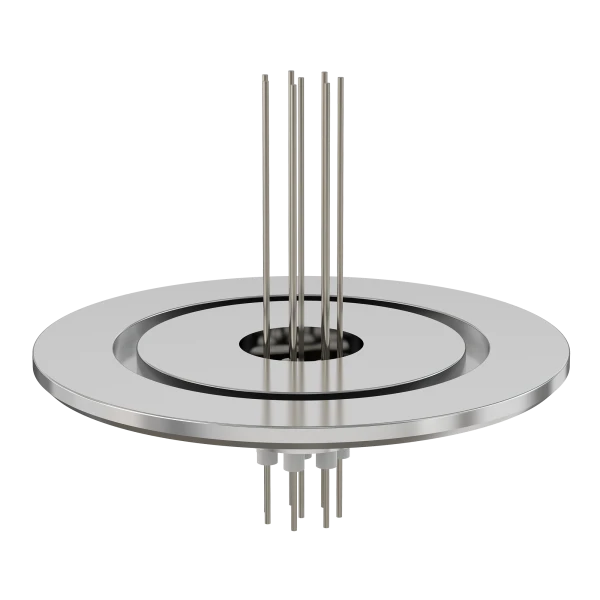

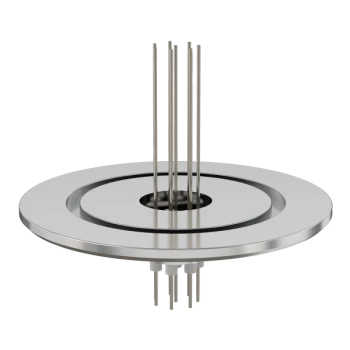

Multi-pin Instrumentation Feedthrough

Part Number: IFT-NW-50-8P
Quantity:

NW-50 Instrumentation Feedthrough, 8 Pins
Technical Resources
Specifications
  • Feedthrough Type: Instrumentation
  • Flange Size / Type: DN 50 ISO-KF
  • # Feedthroughs: 8 pins (0.032" OD)
  • Pin Material: Nickel
  • Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-8 mbar to 1 bar (high vacuum)
  • Temperature Range: |-20 °C to 200 °C
  • Voltage Rating: 00 V DC
  • Current Rating: A
  • Electrical Connector: FT-VC
  • Weight: .5 lbs
Imperial Units
Dim A: .820"
Dim B: .68"
