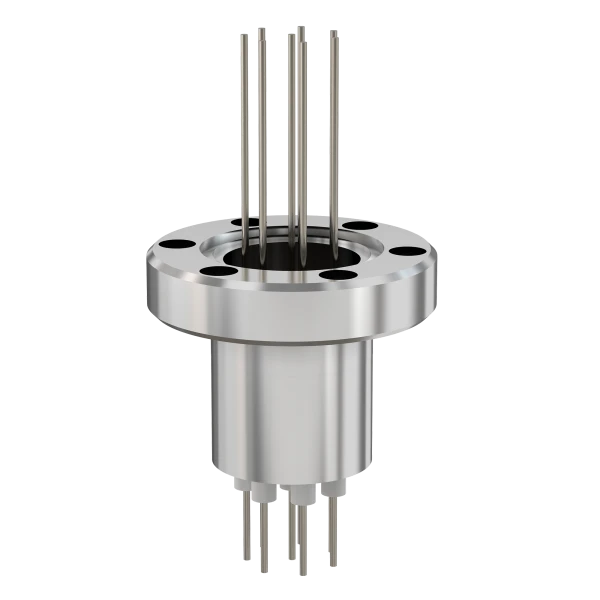

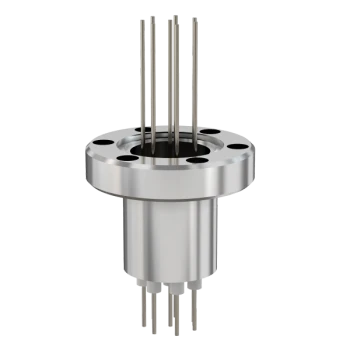

Multi-pin Instrumentation Feedthrough IFT-075-8P

Part Number: IFT-075-8P

Price: $223.00
Quantity:

1.33" OD CF Instrumentation Feedthrough, 8 Pins
Technical Resources
Specifications
Feedthrough Type: Instrumentation
Flange Size / Type: DN 16 CF (1.33" OD)
# Feedthroughs: 8 pins (0.032" OD)
Pin Material: Nickel
Flange Material: 304 Stainless
Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
Temperature Range: |-270 °C to 450 °C
Voltage Rating: 00 V DC
Current Rating: A
Electrical Connector: FT-VC
Weight: .5 lbs
Imperial Units
Dim A: .32"
Dim B: .18"
