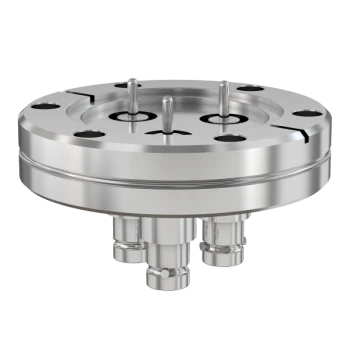

MHV Instrumentation Feedthrough

Part Number: MHV-150-4

Price: $366.00

Quantity:

2.75" OD CF MHV Coaxial Feedthrough, Four Conductors

Technical Resources

Product Spec Sheet

Specifications

Feedthrough Type: Instrumentation
Flange Size / Type: DN 40 CF (2.75" OD)
# Feedthroughs: Four
Pin Material: Stainless Steel
Flange Material: 304 Stainless
Vacuum Range: 1 · 10^-10 mbar to 1 bar (UHV)
Temperature Range: |-270 °C to 450 °C
Voltage Rating: KV DC
Current Rating: A
Electrical Connector: NC-VC
Weight: .5 lbs

Coaxial-Feedthroughs-Dia

Dim A: .38"
Dim B: .300"
Dim C: .950"

Installation Hardware

CF Bolt Kit [KNP-200]

Need a Custom Design?
Click Here to Request a Quote
