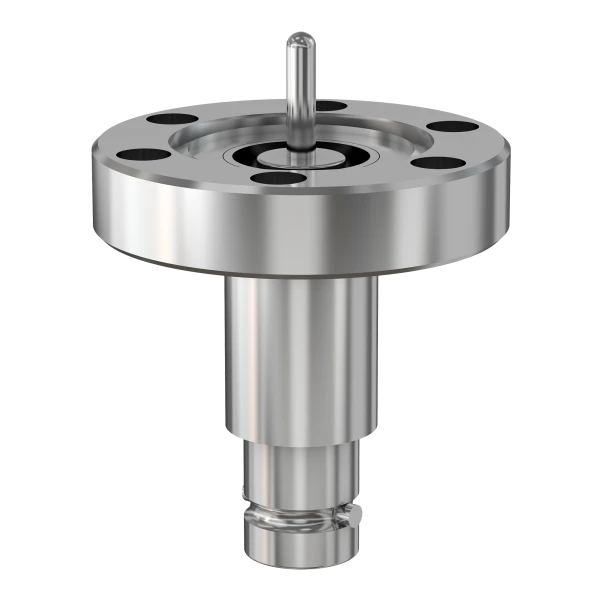

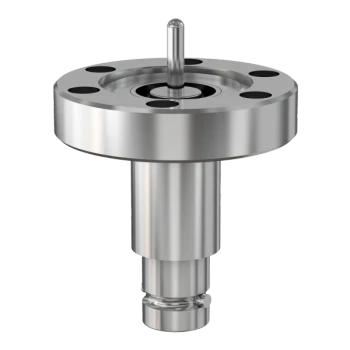

BNC Instrumentation Feedthrough

Part Number: BNC-150-1

Price: $147.00

Quantity:

2.75" OD CF Coaxial Feedthrough, 1 Feedthrough

Technical Resources

Product Spec Sheet

Specifications

Feedthrough Type: Instrumentation
Flange Size / Type: DN 40 CF (2.75" OD)
# Feedthroughs: One
Pin Material: Stainless Steel
Flange Material: 304 Stainless
Vacuum Range: 1 · 10^-10 mbar to 1 bar (UHV)
Temperature Range: |-270 °C to 450 °C
Voltage Rating: 00 V DC
Current Rating: A
Electrical Connector: NC-VC
Weight: .5 lbs

Coaxial-Feedthroughs-Dia

Dim A: .38"
Dim B: .370"

Installation Hardware

CF Gasket [G-275-SP]

Need a Custom Design?
Click Here to Request a Quote
