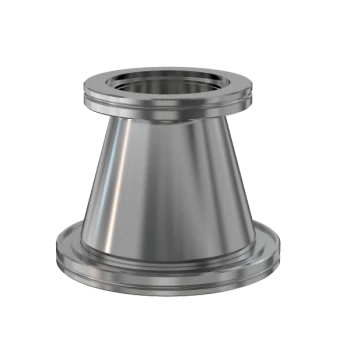

ISO-K Conical Reducer Nipple

Part Number: 2NRC-ISO-100-80-OF
Price: $346.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-K and ISO-F flanges are manufactured in accordance with DIN 28404 and ISO 1609
  • Many others available
  • Most common standard lengths and sizes listed
ISO-100 to ISO-80 OF Conical Reducer Nipple
Technical Resources
Specifications
  • Flange 1: DN 100 ISO-K
  • Type: Conical Reducer
  • Flange 2: DN 80 ISO-K
  • Material: 304 Stainless
  • Tube OD: 4"
  • Length: 4.12"
  • Tube OD 2: 3"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 2.8 lbs

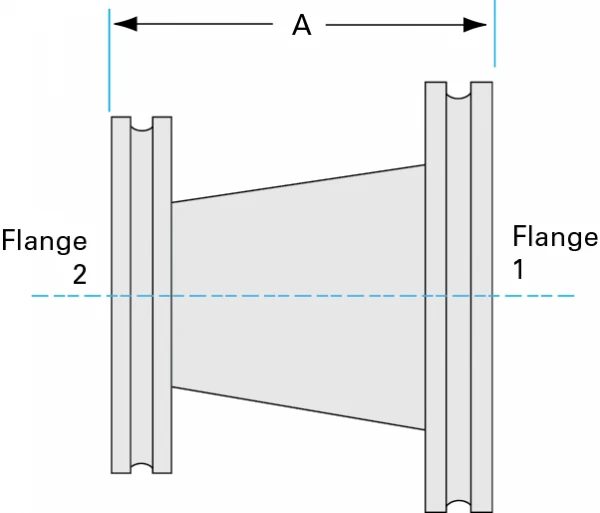

ISO-Conical-Reducer-Nipples-Dia
Imperial Units
Dim A: 4.12"

Installation Hardware
