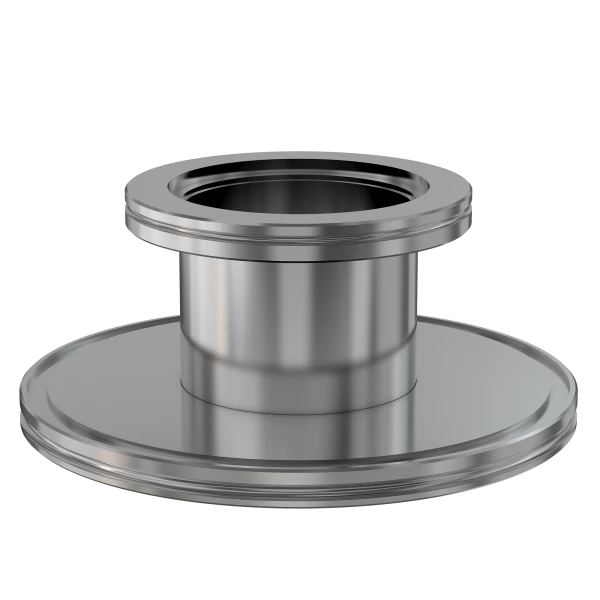

ISO-K Reducer Nipple

Part Number: 2NR-ISO-100-63-OF
Price: $287.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-K and ISO-F flanges are manufactured in accordance with DIN 28404 and ISO 1609
  • Many others available
  • Most common standard lengths and sizes listed
ISO-100 to ISO-63 OF Reducer Nipple
Technical Resources
Specifications
  • Flange 1: DN 100 ISO-K
  • Type: Straight Reducer
  • Flange 2: DN 63 ISO-K
  • Material: 304 Stainless
  • Tube OD: 4"
  • Length: 3.00"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 3.6 lbs
ISO-Reducer-Nipples-Dia
Imperial Units
Dim A: 3.00"

Installation Hardware
