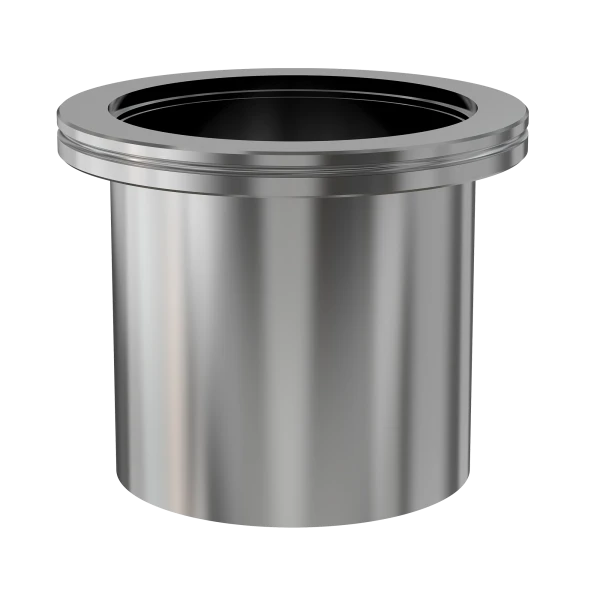

ISO-K Half Nipple

Part Number: 1N-ISO-80-OF-316L
Price: $149.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-K and ISO-F flanges are manufactured in accordance with DIN 28404 and ISO 1609
  • Many others available
  • Most common standard lengths and sizes listed
ISO-80 OF Half Nipple, 316L SS
Technical Resources
Specifications
  • Flange 1: DN 80 ISO-K
  • Type: Half Nipple
  • Flange 2: 3" OD Tube
  • Material: 316L stainless
  • Tube OD: 3"
  • Length: 3.50"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 2.9 lbs
ISO-Half-Nipples-Dia
Imperial Units
Dim A: 3.50"

Installation Hardware
