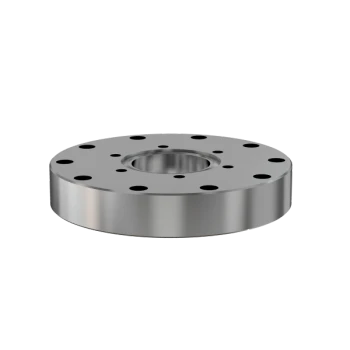

CF Zero Length Reducer Flange

Part Number: 675-462-300Z
Price: $429.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Most popular sizes and types listed
  • Rotatable flanges make component alignment easy
  • The CF flange system is ideal for UHV system construction
6.75" OD to 4.62" OD Zero Length CF Flange Reducer, 3" ID
Technical Resources
Specifications
  • Flange 1: DN 125 CF (6.75" OD)
  • Type: Zero length reducer
  • Flange 2: DN 75 CF (4.62" OD)
  • Material: 304 Stainless
  • Bolt Holes (large flange): 18 ea. at 0.332"
  • Bolt Holes (small flange): 10 ea. with 5/16-24 thread
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-13 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -200 °C to 450 °C
  • Weight: 6.4 lbs

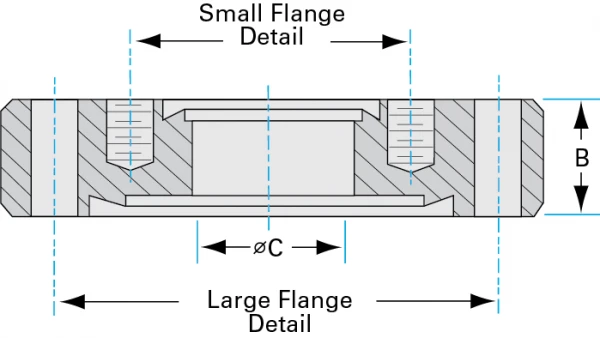

CF-Zero-Length-Reducer-Dia
Imperial Units
Dim A: 6.73"
Dim B: 0.844"
Dim C: 3.00"
Dim F: 5.97"
Dim F-2: 4.03"
Dim G: 0.332"
Dim G-2: 5/16-24

Installation Hardware
