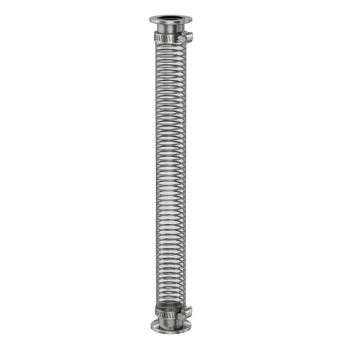

ISO-KF PVC Flexible Hose

Part Number: PVC-100-36-2NW
Price: $102.50
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Dampen out pump vibrations with a flex coupling
  • Easily join two mis-aligned ports using a flex hose
  • Standard lengths and flange combinations offered. Others available.
  • Thin, medium and thick wall hoses offer a range of flexibility and robustness
NW-25 PVC Flexible Hose, 36" Length
Technical Resources
Specifications
  • Flange Size: DN 25 ISO-KF
  • Type: PVC Flexible Hose
  • ID: 1"
  • Length: 36"
  • Bend Radius: 4"
  • Hose Material: PVC
  • Flange & Cuff Material: 304 Stainless
  • Vacuum Range: 1 · 10-2 mbar to 1 bar
  • Temperature Range: -4 °C to 65 °C
  • Weight: 0 lbs

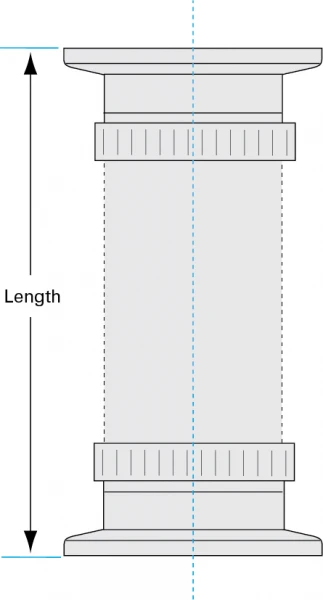

PVC-Hose-with-NW-Flanges-Dia
Imperial Units
Dim A: 36"
Dim B: 4"
Dim C: 1"
Dim D: 1.38"
