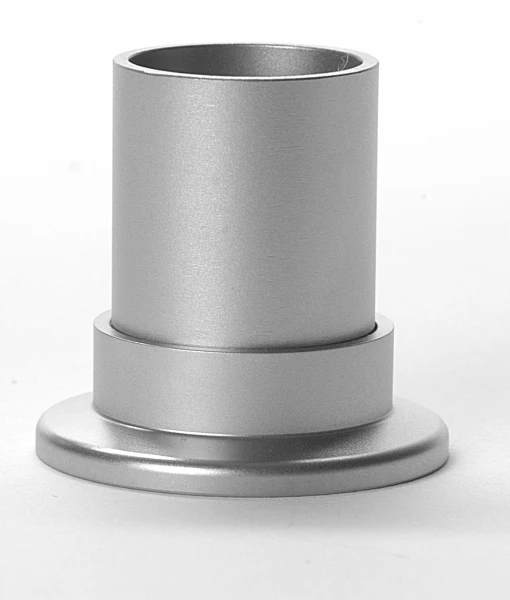

ISO-KF PVC Hose Nipples

Part Number: 1HN-NW-50-200

Price: $51.00

Quantity:

Features

Contact us at 800-824-4166 if you can't find exactly what you need
Dampen out pump vibrations with a flex coupling
Easily join two mis-aligned ports using a flex hose
Standard lengths and flange combinations offered. Others available.
Thin, medium and thick wall hoses offer a range of flexibility and robustness

NW-50 PVC Hose Nipple (fits PVC-200)

Technical Resources

Specifications

Flange Size: DN 50 ISO-KF
Type: PVC Hose Nipple
Length: 2.17"
Vacuum Range: 1 · 10^-2 mbar to 1 bar
Temperature Range: -4 °C to 65 °C
Weight: 0 lbs

PVC-Hose-Nipples-Nipples-Dia

Dim A: 2.17"
Dim D: 2"

Installation Hardware

ISO-KF Buna O-Ring [NW-50-OR-B]
