ISO-KF Braided Flexible Hose

Part Number: FHB-200-20-2NW
Price: $385.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Dampen out pump vibrations with a flex coupling
  • Easily join two mis-aligned ports using a flex hose
  • Standard lengths and flange combinations offered. Others available.
  • Thin, medium and thick wall hoses offer a range of flexibility and robustness

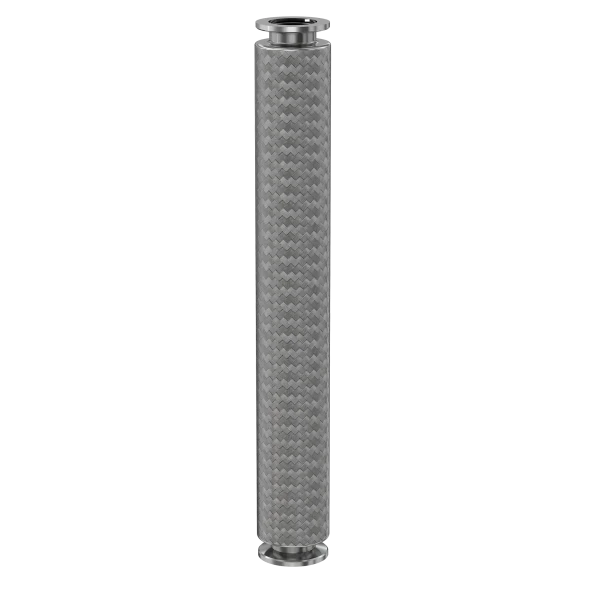

NW-50 Flexible Stainless Steel Braided Hose, 20" Length
Technical Resources
Specifications
  • Flange Size: DN 50 ISO-KF
  • Type: Braided Flexible Hose
  • ID: 2"
  • Length: 20"
  • Wall Thickness: 0.012"
  • Weight: 2.6 lbs
  • Hose Material: 321 stainless
  • Flange & Cuff Material: 304 Stainless
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Bend Radius: 4.7"
NW-Flexible-Stainless-Steel-Braided-Hose-Dia
Imperial Units
Dim A: 20"
Dim B: 4.7"
Dim C: 2"
Dim D: 2-3/4 "
Dim E: 0.012"
