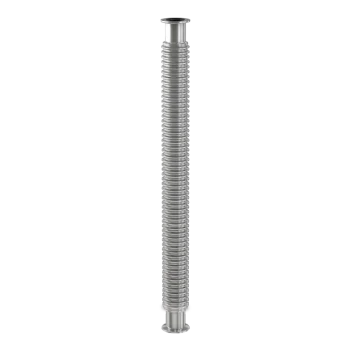

ISO-KF Medium Wall Flexible Hose

Part Number: FH-200-40-2NW
Price: $384.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Dampen out pump vibrations with a flex coupling
  • Easily join two mis-aligned ports using a flex hose
  • Standard lengths and flange combinations offered. Others available.
  • Thin, medium and thick wall hoses offer a range of flexibility and robustness
NW-50 Medium Wall SS Flexible Hose, 40" Length
Technical Resources
Specifications
  • Flange Size: DN 50 ISO-KF
  • Type: Flexible Bellows Hose
  • ID: 2"
  • Length: 40"
  • Weight: 2.6 lbs
  • Hose Material: 316 or 321 SS
  • Flange & Cuff Material: 304 SS
  • Vacuum Range: Elastomer Seal (HV): > 1 x 10ˉ ⁸ mbar to 1 bar
    Metal Seal (UHV): > 1 x 10ˉ¹⁰ mbar to 1 bar
  • Temperature Range: Elastomer Seal (HV): -20°C to 150°C
    Metal Seal (UHV): -200°C to 300°C
  • Bend Radius: 3.5"

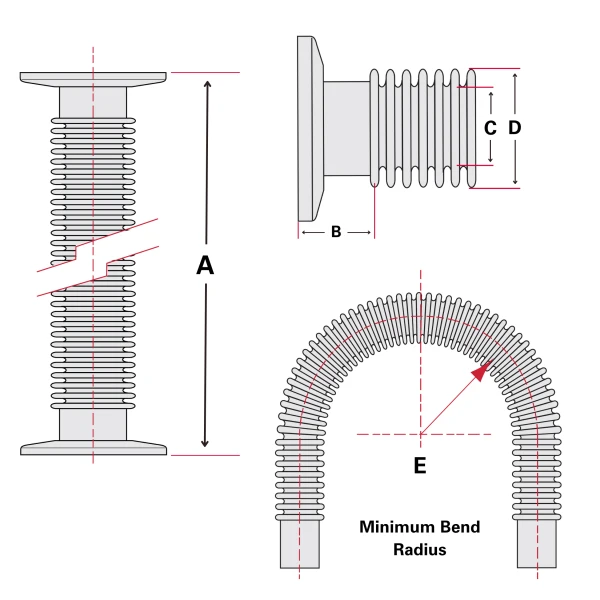

NW Flex Hose SS Medium Wall _ Dia A B C pvve
Imperial Units
Dim A: 40"
Dim B: < 1.7"
Dim C: > 1.9"
Dim D: < 2.6"
Dim E: 3.5"
