CF Medium Wall Flexible Hose

Part Number: FH-250-24-2CF
Price: $418.50
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Dampen out pump vibrations with a flex coupling
  • Easily join two mis-aligned ports using a flex hose
  • Standard lengths and flange combinations offered. Others available.
  • Thin, medium and thick wall hoses offer a range of flexibility and robustness

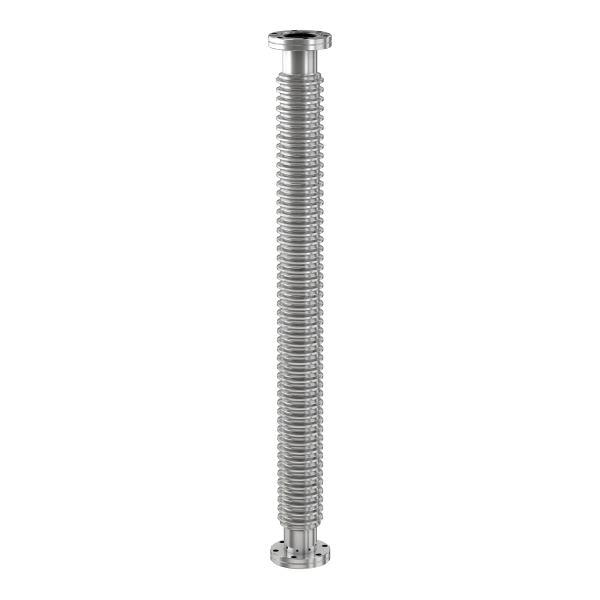

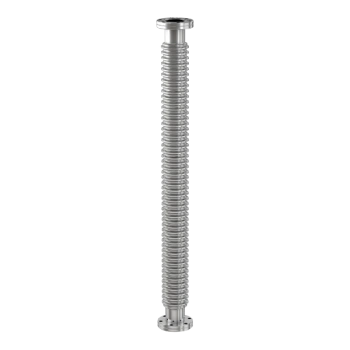

4.5" OD CF Medium Wall SS Flexible Hose, 24" Length
Technical Resources
Specifications
  • Flange Size: DN 63 CF (4.5" OD)
  • Type: Flexible Bellows Hose
  • ID: 2-1/2"
  • Length: 24"
  • Wall Thickness: 0.016"
  • Bend Radius: 4.3"
  • Hose Material: 321 stainless
  • Flange & Cuff Material: 304 Stainless
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-13 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -200 °C to 450 °C
  • Weight: 5.7 lbs
CF-Flexible-Stainless-Steel-Hose-Dia
Imperial Units
Dim A: 24"
Dim B: 4.3"
Dim C: 2-1/2"
Dim D: 3.34"
Dim E: 0.016"
