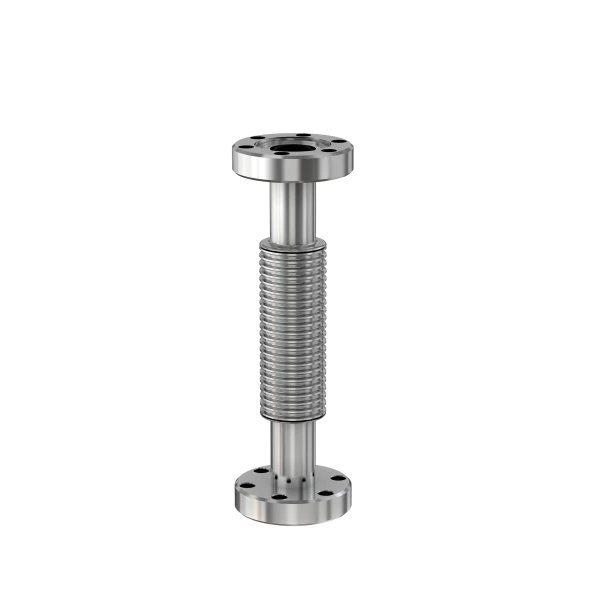

CF Flexible Coupling

Part Number: 2FC-150-2
Price: $159.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Dampen out pump vibrations with a flex coupling
  • Easily join two mis-aligned ports using a flex hose
  • Standard lengths and flange combinations offered. Others available.
  • Thin, medium and thick wall hoses offer a range of flexibility and robustness
2.75" OD CF Flexible Coupling, 4.2" Free Length
Technical Resources
Specifications
  • Flange Size: DN 40 CF (2.75" OD)
  • Type: Flexible Coupling
  • ID: 1-1/2"
  • Length: 4.2"
  • Wall Thickness: 0.006"
  • Hose Material: 321 stainless
  • Flange & Cuff Material: 304 Stainless
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-13 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -200 °C to 450 °C
  • Weight: 1.42 lbs
CF-Flexible-Couplings-Dia
Imperial Units
Dim A: 4.2"
Dim B: 3.8"
Dim C: 1-1/2"
Dim D: 69
Dim E: 0.006"
