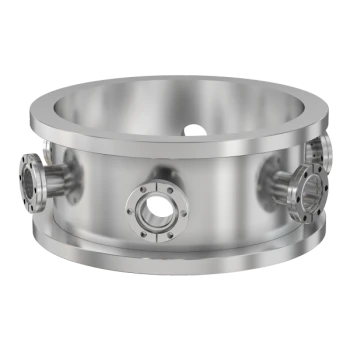

Vacuum Feedthrough Collar

Part Number: FCO-2400-12-EP

Quantity:

24" Feedthrough Collar with Twelve 2.75" OD CF Ports, Electropolish Finish, Includes O-Ring

Specifications

Product Type: Feedthrough Collar
Feedthrough Collar Size: 24" OD
Base Flange Size: 26" OD
Finish: Electropolished
Material: 304 SS
Vacuum Range: 1 · 10^-8 mbar to 1 bar
Temperature Range: -20 °C to 200 °C

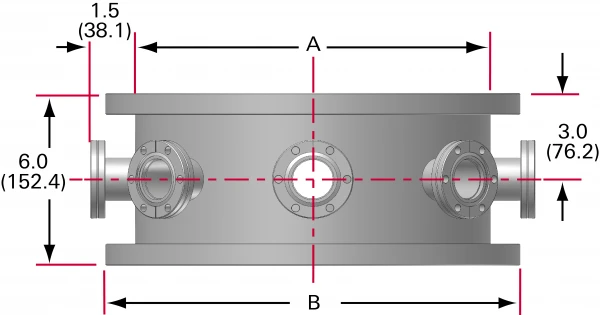

Feedthrough Collar Dia _ 2023a

Dim A: 24"
Dim B: 26"
