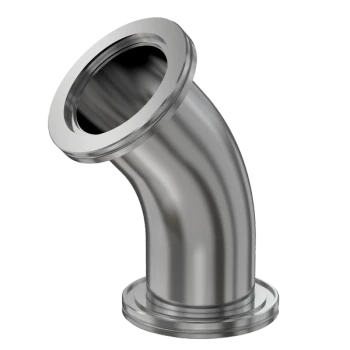

ISO-K 45 Redius Elbow w/ Tangents

Part Number: 2KL-ISO-100-OF
Price: $549.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-K and ISO-F flanges are manufactured in accordance with DIN 28404 and ISO 1609
  • Many others available
  • Most common standard lengths and sizes listed
ISO-100 OF 45 Degree Radius Elbow w/Tangents
Technical Resources
Specifications
  • Flange Size: DN 100 ISO-K
  • Elbow Type: Tangent 45 Degree
  • Material: 304 Stainless
  • Tube OD: 4"
  • Port Length: 5.03"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 5.1 lbs

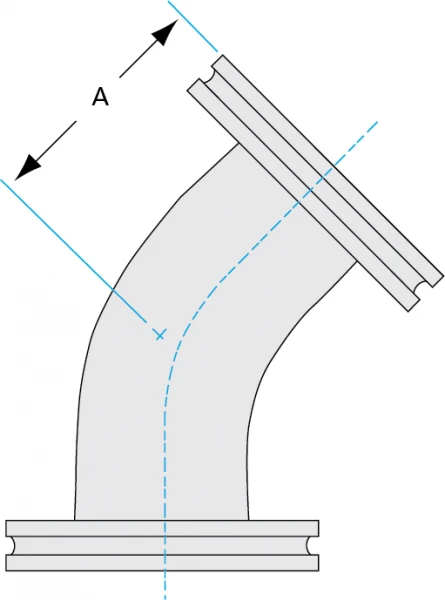

ISO-45-Degree-Elbows-with-Tangents-Dia
Imperial Units
Dim A: 5.03"

Installation Hardware
