Home / Vacuum Flanges & Fittings / Elbows / ConFlat (CF) Elbow Fittings / CF 45 Radius w/ Tangents
Click to enlarge
View CAD

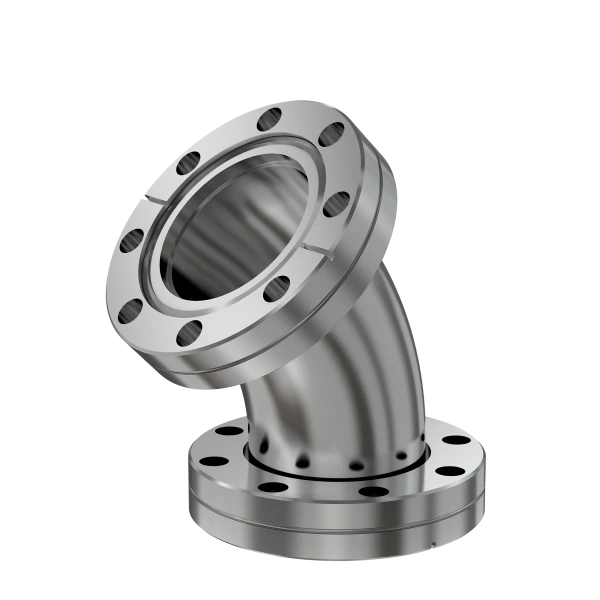

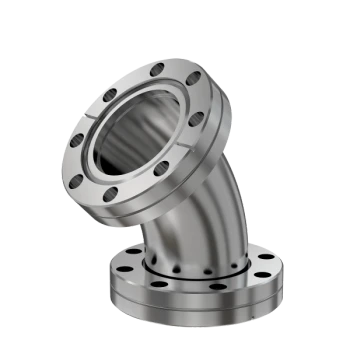

CF 45 Radius w/ Tangents

Part Number: 2KL-100
Price: $120.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Most popular sizes and types listed
  • Rotatable flanges make component alignment easy
  • The CF flange system is ideal for UHV system construction
2.12" OD CF 45-Degree Radius Elbow w/Tangents
Technical Resources
Specifications
  • Flange Size: DN 25 CF (2.12" OD)
  • Elbow Type: Tangent 45 Degree
  • Material: 304 Stainless
  • Tube OD: 1"
  • Port Length: 1.14"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-13 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -200 °C to 450 °C
  • Weight: 0.81 lbs

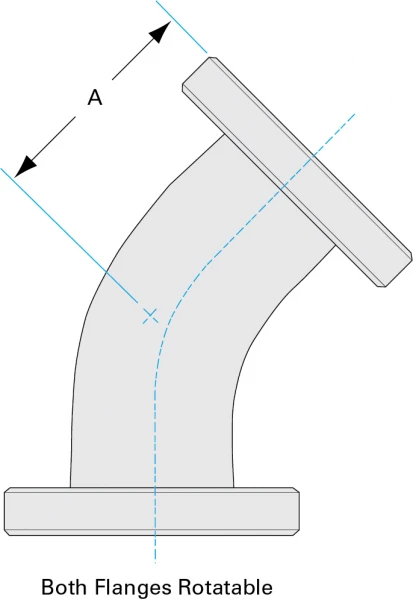

CF-45-Radius-Elbow-with-Tangents-Dia
Imperial Units
Dim A: 1.14"

Installation Hardware
