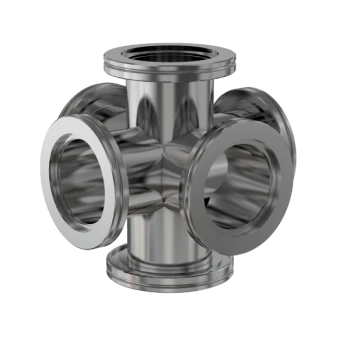

ISO-K 6-Way Cross

Part Number: 6C-ISO-160-OF

List Price: $2,425.00

Price: $2,425.00

Quantity:

Features

Contact us at 800-824-4166 if you can't find exactly what you need
ISO-K and ISO-F flanges are manufactured in accordance with DIN 28404 and ISO 1609
Many others available
Most common standard lengths and sizes listed

ISO-160 OF 6-Way Cross

Technical Resources

Specifications

Flange Size: DN 160 ISO-K
Cross Type: 6-Way
Material: 304 Stainless
Tube OD: 6"
Port Length: 5.38"
Vacuum Range: FKM: 1 · 10^-8 mbar to 1 bar
Metal seal: 1 · 10^-10 mbar to 1 bar
Temperature Range: FKM: -20 °C to 180 °C
Metal seal: -270 °C to 150 °C
Weight: 15.4 lbs

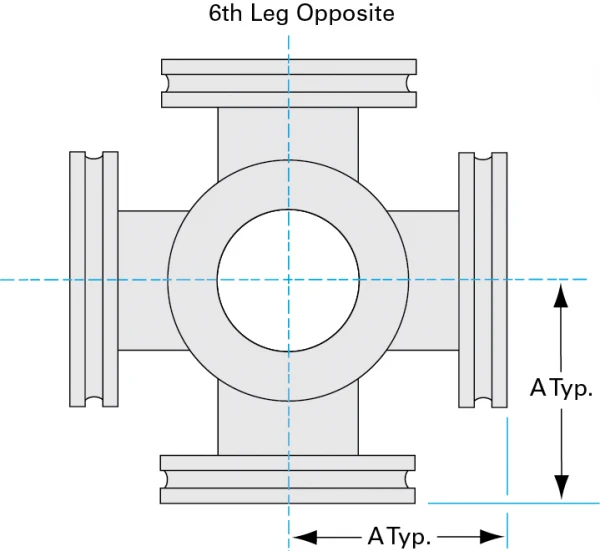

Dim A: 5.38"
