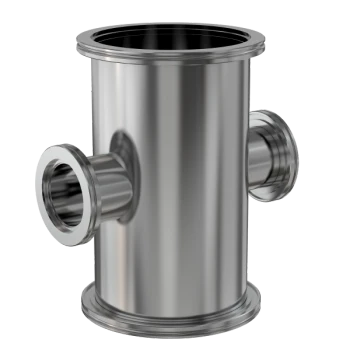

ISO-K Reducer Cross

Part Number: 4CR-ISO-160-100-OF
Price: $1,194.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-K and ISO-F flanges are manufactured in accordance with DIN 28404 and ISO 1609
  • Many others available
  • Most common standard lengths and sizes listed
ISO-160 to ISO-100 OF Reducer Cross
Technical Resources
Specifications
  • Flange Size: DN 160 ISO-K
  • Cross Type: Reducer Cross
  • Flange 2: DN 100 ISO-K
  • Material: 304 Stainless
  • Tube OD: 6"
  • Tube OD 2: 4"
  • Port Length: 5.38"
  • Port Length 2: 5.13"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 9.9 lbs

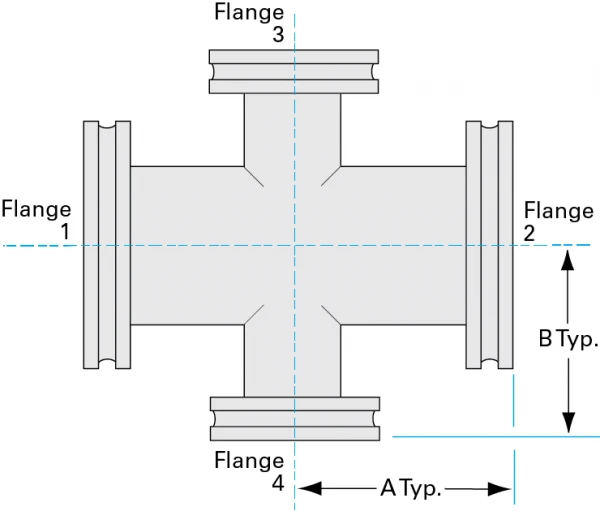

ISO-4-Way-Reducer-Crosses-Dia
Imperial Units
Dim A: 5.38"
Dim B: 5.13"

Installation Hardware
