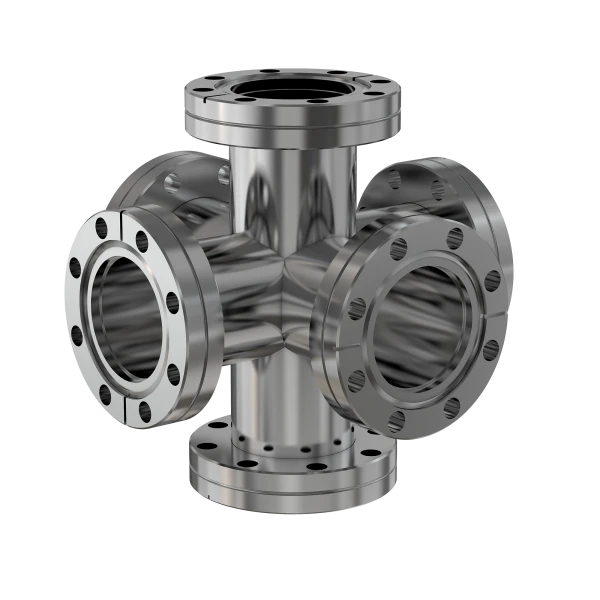

CF 6-Way Cross

Part Number: 6C-075
Price: $370.00

  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Most popular sizes and types listed
  • Rotatable flanges make component alignment easy
  • The CF flange system is ideal for UHV system construction
1.33" OD CF 6-Way Cross
Technical Resources
  • Flange Size: DN 16 CF (1.33" OD)
  • Cross Type: 6-Way
  • Material: 304 Stainless
  • Tube OD: 3/4"
  • Port Length: 1.50"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-13 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -200 °C to 450 °C
  • Weight: 0.57 lbs
Imperial Units
Dim A: 1.50"
