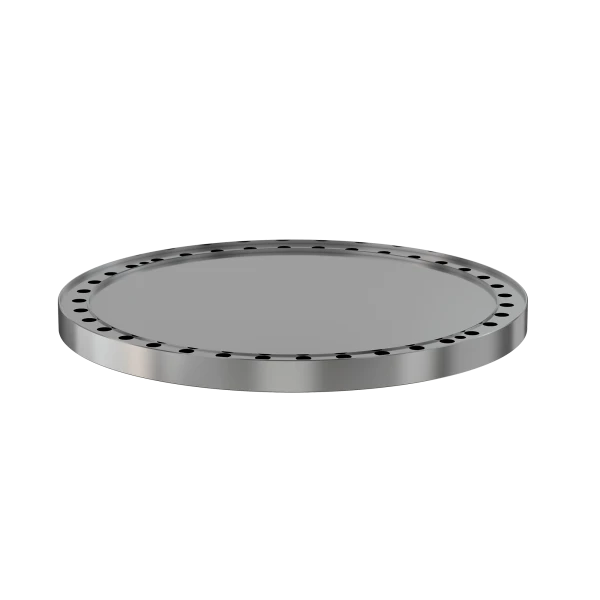

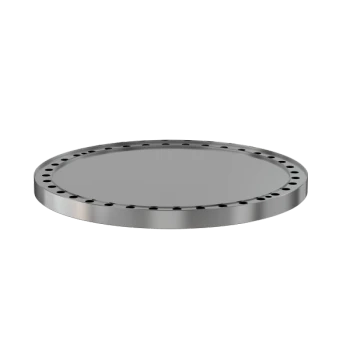

CF Blank Wire Seal Flange

Part Number: WS-19-000F

Quantity:

Features

Contact us at 800-824-4166 if you can't find exactly what you need
Dished shape blanks and other options available
Robust seal tolerant of bakeout to 450C
Wire Seal make UHV seals possible in very large flange sizes

19" Wire Seal Flange, Blank, Female

Technical Resources

Product Spec Sheet

Specifications

Flange Size: DN 16 (19" OD)
Type: Blank
Gender: Female
Material: 304 Stainless
Bore: Blank
Thickness: 1.31"
Bolt Circle: 17.9"
Bolt Hole Diameter: 0.531"
# Bolt Holes: 36
Vacuum Range: 1 · 10^-13 mbar to 1 bar
Temperature Range: -200 °C to 450 °C
Weight: 114 lbs

Wire-Seal-Female-Blank-Dia

Dim A: 19.6"
Dim B: 1.31"
Dim C: Blank
Dim F: 17.9"
Dim G: 0.531"

Installation Hardware

Need a Custom Design?
Click Here to Request a Quote
