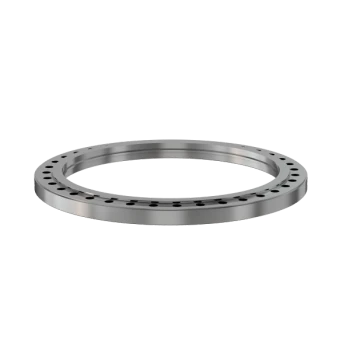

CF Wire Seal Flange

Part Number: WS-14-1200M
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Dished shape blanks and other options available
  • Robust seal tolerant of bakeout to 450C
  • Wire Seal make UHV seals possible in very large flange sizes
14" Wire Seal Flange, 12" Bore, Male
Technical Resources
Specifications
  • Flange Size: DN 12 (14" OD)
  • Type: Bored
  • Gender: Male
  • Material: 304 Stainless
  • Bore: 11.8"
  • Thickness: 1.13"
  • Bolt Circle: 13.6"
  • Bolt Hole Diameter: 0.406"
  • # Bolt Holes: 32
  • Vacuum Range: 1 · 10-13 mbar to 1 bar
  • Temperature Range: -200 °C to 450 °C
  • Weight: 18.1 lbs

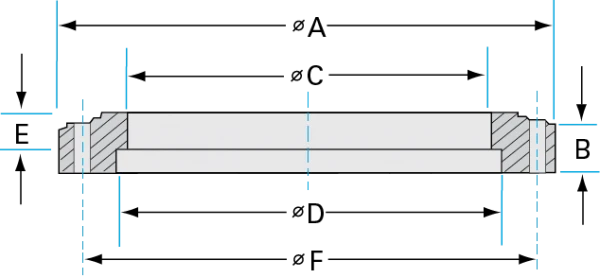

Wire-Seal-Male-Bored-Dia
Imperial Units
Dim A: 14.6"
Dim B: 1.13"
Dim C: 11.8"
Dim D: 12.0"
Dim E: 0.630"
Dim F: 13.6"
Dim G: 0.406"
