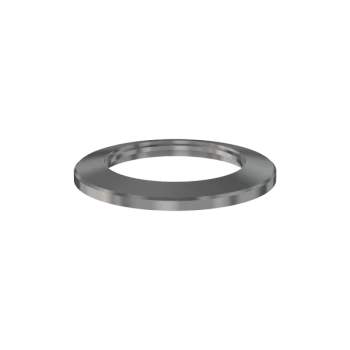

ISO-KF Bored Flange

Part Number: NW-50B-100
Price: $21.90
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-KF flanges are manufactured in accordance with DIN 28403 and ISO 2861
  • Many others available, including a range of 316L material and preps for metric tubing
  • Most common standard lengths and sizes listed
NW-50 x 1" ID Bored Flange
Technical Resources
Specifications
  • Flange Size: DN 50 ISO-KF
  • Type: Bored
  • Material: 304 Stainless
  • Bore: 0.938"
  • Thickness: 0.200"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 0.36 lbs

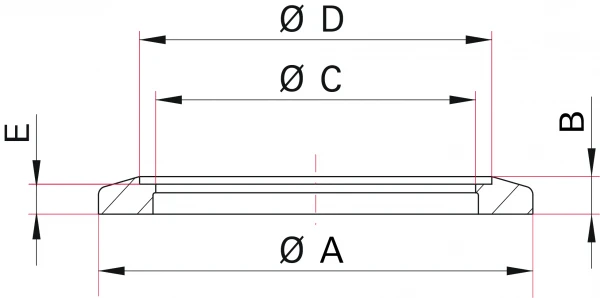

NEW _ NW -Bored-Blank-Flanges_DIA-A
Imperial Units
Dim A: 2.95"
Dim B: 0.200"
Dim C: 0.938"
Dim D: 1.01"
Dim E: 0.150"
