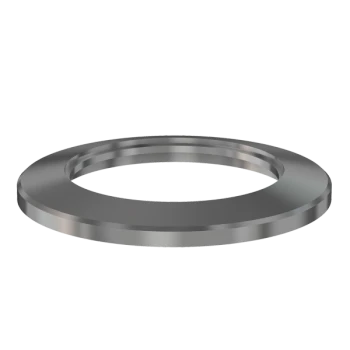

ISO-KF Bored Flange

Part Number: NW-10B-038
Price: $9.45
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-KF flanges are manufactured in accordance with DIN 28403 and ISO 2861
  • Many others available, including a range of 316L material and preps for metric tubing
  • Most common standard lengths and sizes listed
NW-10 x 0.375" ID Bored Flange
Technical Resources
Specifications
  • Flange Size: DN 10 ISO-KF
  • Type: Bored
  • Material: 304 Stainless
  • Bore: 0.326"
  • Thickness: 0.200"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 8 lbs
NEW _ NW -Bored-Blank-Flanges_DIA-A
Imperial Units
Dim A: "
Dim B: 0"
Dim C: 6"
Dim D: 0"
Dim E: 0"

Installation Hardware
