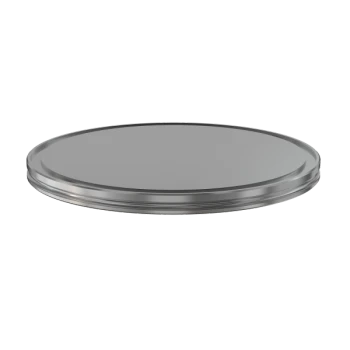

ISO-K Blank Flange

Part Number: ISO-80-000-OF

Price: $83.50

Quantity:

Features

Contact us at 800-824-4166 if you can't find exactly what you need
ISO-K and ISO-F flanges are manufactured in accordance with DIN 28404 and ISO 1609
Many others available
Most common standard lengths and sizes listed

ISO-80 OF Blank Flange

Technical Resources

Specifications

Flange Size: DN 80 ISO-K
Type: Blank
Material: 304 Stainless
Bore: Blank
Thickness: 0.470"
Vacuum Range: FKM: 1 · 10^-8 mbar to 1 bar
Metal seal: 1 · 10^-10 mbar to 1 bar
Temperature Range: FKM: -20 °C to 180 °C
Metal seal: -270 °C to 150 °C
Weight: 2 lbs

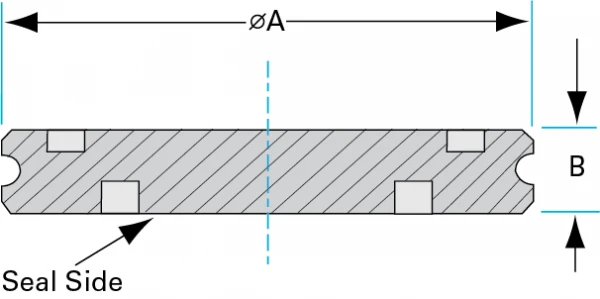

Dim A: 4.33"
Dim B: 0.470"
Dim C: Blank

Installation Hardware
