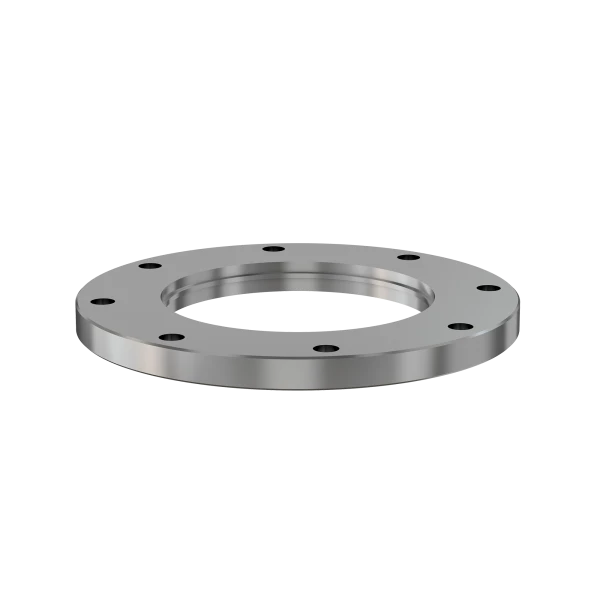

ISO-F Nonrotatable Flange

Part Number: ISO-80-300N
Price: $114.50
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-K and ISO-F flanges are manufactured in accordance with DIN 28404 and ISO 1609
  • Many others available
  • Most common standard lengths and sizes listed
ISO-80 x 3" ID Bored Nonrotatable Flange
Technical Resources
Specifications
  • Flange Size: DN 80 ISO-F
  • Type: Bored
  • Material: 304 Stainless
  • Bore: 2.94"
  • Thickness: 0.470"
  • Bolt Circle: 4.92"
  • Bolt Hole Diameter: 0.359"
  • # Bolt Holes: 8
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 2.45 lbs
ISO-Nonrotatable-Fastener-Flanges-Dia-B
Imperial Units
Dim A: 5.71"
Dim B: 0.470"
Dim C: 2.94"
Dim D: 3.01"
Dim E: 0.250"
Dim F: 4.92"
Dim G: 0.359"
